Metal Siding Wall Cladding Architectural
spandrel Panel Forming Machine

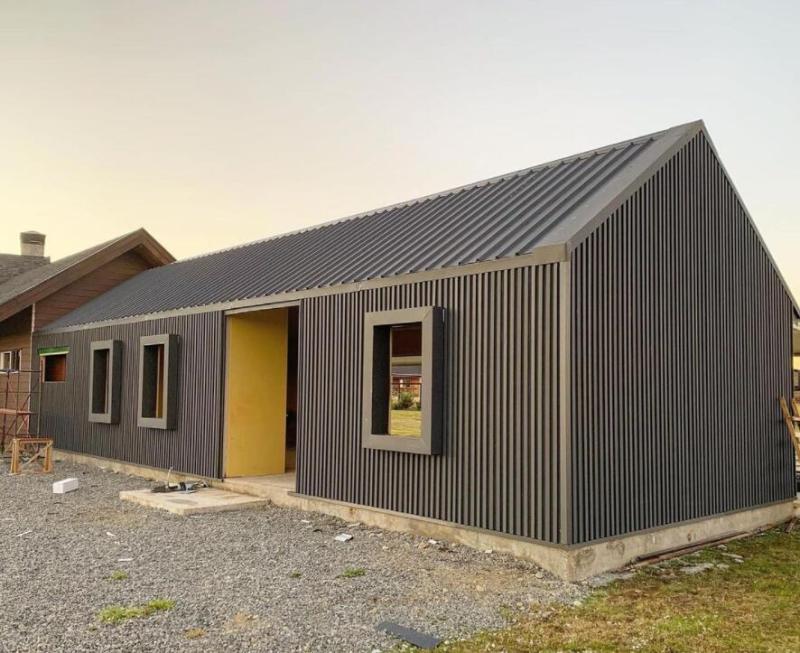

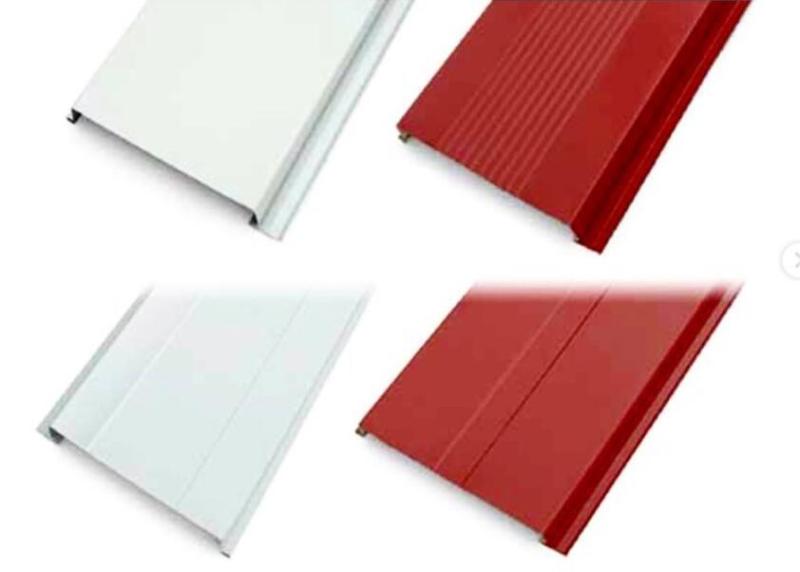

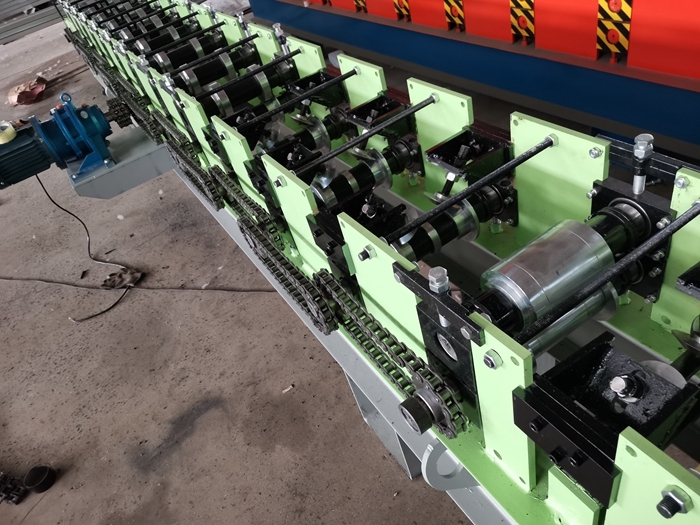

Architectural spandrel Panel Forming Machine is used to produce wall panels automatically. The Machine can cutoff the wall panel profiles into desire length.
| Coil Required |
Material |
PPGI GI AL |
| Width |
914/925/1000/1200/1220/1250mm |
| Thickness |
0.3-0.7mm as custom order |
| Power Required |
Power |
380V 50Hz 3 Phase, 220V, 415V available |
| Main Motor |
5.5KW Siemens Brand |
| Cutting Motor |
4KW Siemens Brand |
| Machine |
Support Frame |
40H Steel |
| Forming Stations |
14 Rows as profile require |
| Structure |
18-20mm |
| Shaft |
75mm Solid shaft |
| Roller |
45# Steel with hear treatment |
| Chain |
1.2inch |
| Bearings |
Standard as custom order |
| Speed |
15-3-m/min |
| Electric Components |
Delta and Siemens brand |
| Size |
7.5*1.3*1.6M |
| Weight |
4T |
We have a full range of
roll forming machine for South America . Such as
PV4 Metel Roofing Machine ,
Tr5 Roof sheet machine , Pv6 and PIT910 ,
Corrugated sheet forming machine , etc . Contact us now for more information.
