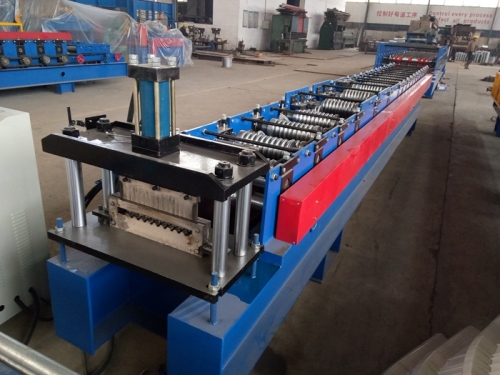

Calamine Hidden fixation Cladding Wall Panel Making Machine
Architectural cladding Wall Panel Roll Forming Machine is used to produce wall panels automatically. The Machine can cutoff the wall panel profiles into desire length.

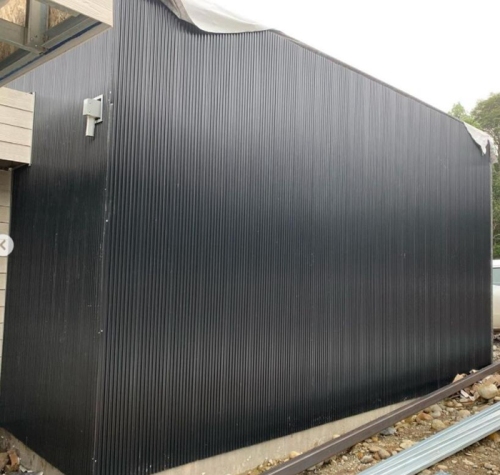

Metal Wall Panel
As we know, traditional wall panels is made by brick, which is composed of clay-bearing soil, sand, and lime, or concrete materials. And nowadays, metal wall panel are widely used in Stadium, convention center, exhibition hall, railway station, high grade villa, airport, theater and many other architectural fields.
| Coil Required |
Material |
PPGI GI AL |
| Width |
400mm |
| Thickness |
0.3-0.7mm as custom order |
| Power Required |
Power |
380V 50Hz 3 Phase, 220V, 415V available |
| Main Motor |
5.5KW Siemens Brand |
| Cutting Motor |
4KW Siemens Brand |
| Machine |
Support Frame |
300H Steel |
| Forming Stations |
22 Rows as profile require |
| Structure |
18-20mm |
| Shaft |
60mm Solid shaft |
| Roller |
45# Steel with hear treatment |
| Chain |
1.2inch |
| Bearings |
Standard as custom order |
| Speed |
15-3-m/min |
| Electric Components |
Delta and Siemens brand |
| Size |
7.5*1.3*1.6M |
| Weight |
4T |
We have a full range of
roll forming machine for South America . Such as
PV4 Metel Roofing Machine ,
Tr5 Roof sheet machine , Pv6 and PIT910 ,
Corrugated sheet forming machine , etc . Contact us now for more information.
