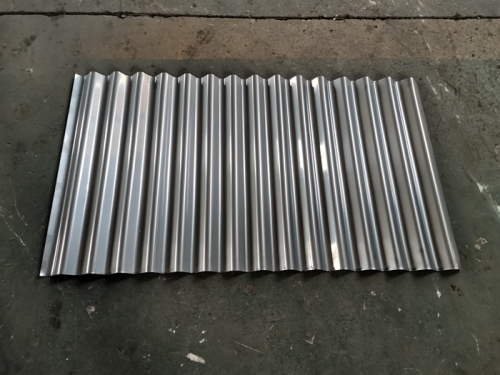

Galvanized Steel Roofing Corrugated Sheet Making MachineTraditional corrugated profile is 914mm as the feeding width, 762mm as the covering width, 76.2mm as the pitch(distance between two consecutive curves), and 18mm as the depth(wave height). Also, there are mini corrugated profile, deep corrugated profile, etc. In South African, customer always buy a double layer roll forming machine for IBR sheets and corrugated sheets instead of IBR sheet roll forming machine and corrugated sheets roll forming machine. Finally to save money and factory space.
We also have Mini Orb Corrugated Sheets Roll Forming Machine, the product is famous in South African .
Roofing Corrugated Sheet Making Machine Specification
Coil Required |
Material |
PPGI GI AL |
Width |
914/925/1000/1200/1220/1250mm |
Thickness |
0.3-0.7mm as custom order |
Power Required |
Power |
380V 50Hz 3 Phase, 220V, 415V available |
Main Motor |
5.5KW Siemens Brand |
Cutting Motor |
4KW Siemens Brand |
Machine |
Support Frame |
40H Steel |
Forming Stations |
14 Rows as profile require |
Structure |
18-20mm |
Shaft |
75mm Solid shaft |
Roller |
45# Steel with hear treatment |
Chain |
1.2inch |
Bearings |
Standard as custom order |
Speed |
15-3-m/min |
Electric Components |
Delta and Siemens brand |
Size |
7.5*1.3*1.6M |
Weight |
4T |
Roofing Corrugated Sheet Making Machine ApplicationBesides of Corrugated sheet making machine, We also have IBR sheet forming machine, Q tile forming machine, Ridge cap forming machine , Floor deck forming machine etc .
To request a quote or If you have any questions about our machines, please contact Rebecca anytime .
