BEMO Sheet, one kind of Standing Seam Sheets, was developed by BEMO company. And the material of the bemo sheets used as below: Aluminium Alloys, full recyclable, can be formed safely and are resistant to corrosion Cold Roll Steel, which is an economical alternative that provides lower liner expansion. Stainless Steel, much more safety in aggressive ambient atmospheres. Copper, long time use and ability to be recycled. and captivating appearance Titanium Zinc, specific self-reparing effect when damaged.

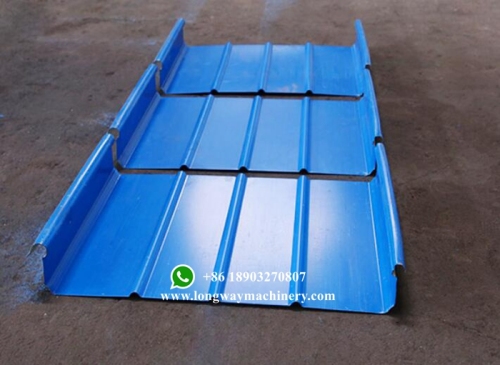

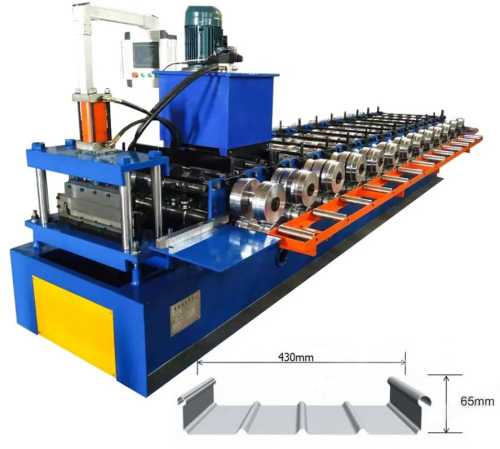

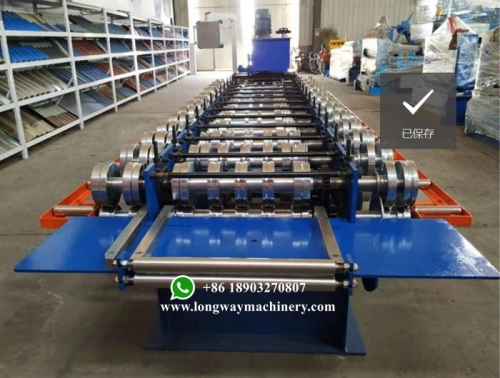

Different appearance of Bemo Sheets Details of Bemo Sheet Roll Forming Machine Suitable Coil Material Profile Width: 305 mm, 333 mm, 400 mm, 500 mm, 600 mm Material and Thickness(mm): Aluminium, 0.8-1.2; Steel, 0.6-0.75; Stainless Steel, 0.5-0.7; Copper, 0.8-1.0; Tiannium Zinc, 0.7-1.0. The bemo sheet roll former is able to produce different width of bemo sheets with quick changeover time.
Bomo Sheet Machine Components Uncoiler, 5 Ton Capacity. Roll Forming Machine, with tapered roll forming mill (optional) Cutoff System Hydraulic System Controlled System Curving Machine, Convex, Concave or “S” Curving Automatic or Manual Seamer
Detailed Parameters of Bemo Sheeting Machine Rolling Speed: 15-20 m/min Forming Roller Stands: 18-24 Rollers Material: Bearing steel, quenched and tempered, chromed 0.05mm thickness Axis Material: Carbon Steel, quenched Spacer Material: 15mm thickness, chromed Motor Power: 7.5KW Cutoff Blade: CR12, quenched and heat treatment Delta PLC, Delta Inverter, Omron Encoder and Limit Switch Voltage: Customized, and usual 380 V, 50 HZ, 3 Phase
